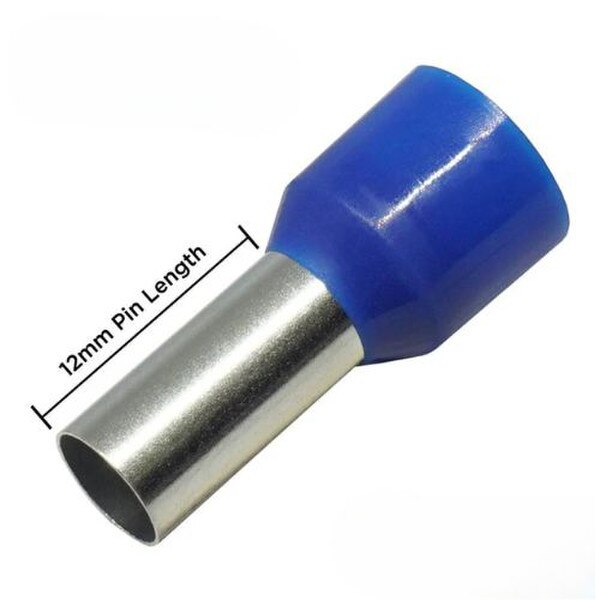

6 AWG Insulated Wire Ferrules, 12mm Pin, Blue, UL Recognized

Wire Size:
6 AWG (16.00mm²)

Color:
Blue

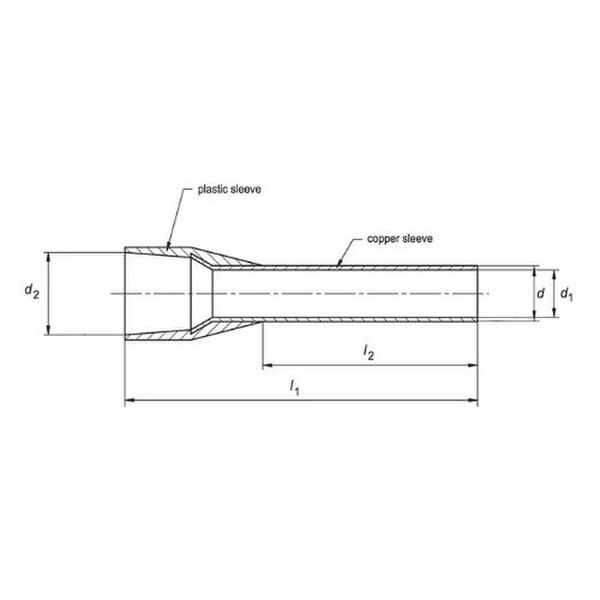

Dimensions:

• Overall Length (L1): 22.0mm (0.87")
• Pin Length (L2): 12.0mm (0.47")
• Sleeve Outer Diameter (D): 6.2mm (0.24")
• Sleeve Inner Diameter (D1): 5.8mm (0.228")
• Collar Inner Diameter (D2): 8.8mm (0.34")

Material:
Tin Plated Copper + Polypropylene Sleeve

Flammability Rating:
UL94HB

Electrical Ratings:

• Maximum Voltage: 600 Volts
• Maximum Current: 95 AMP

Certifications and Compliance:

• UL Recognized: Yes (File Number: E326725)
• CE Certified: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommended Tools:

• Hand Tools: FD1004HD | FD1006SQ | FD1025RV
• Crimping Machines: FD110K

Cross References:

• ABB: 30446705
• Altech Corp: 2855.0 FID0612
• American Electrical: 11121160
• Automation Direct: BM-00614 V3AE000062
• Crimp Supply: 13A11018
• Eclipse: 701-087
• Festo: 13069359
• Greenlee: 477/12
• McMaster-Carr: 7950K37, 7950K144
• Panduit: FSD84-12-C
• Phoenix Contact: 3200564
• Power Phase - Fastenal: 0749626
• SPC Contact: SPC4530, 84N2064
• Thomas Betts: F2045
• Tyco AMP: 2-966 067-6
• Weidmuller: 9019260000
• Wieland: 06.600.3327.0
• Z+F: V3AE0062, V3AE000062
