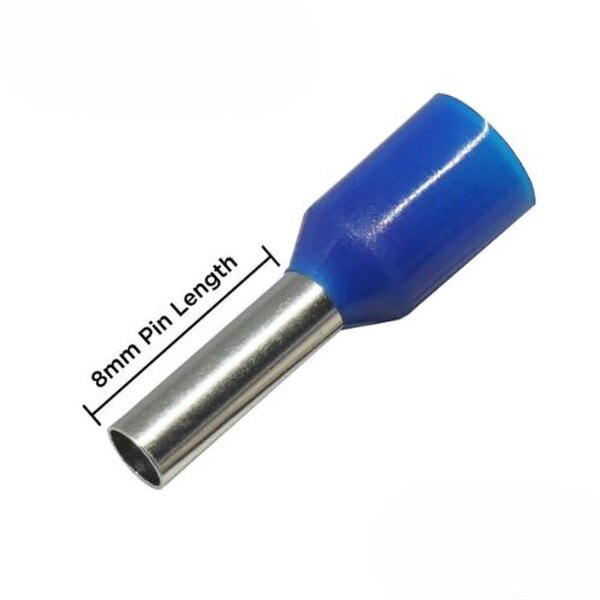

14 AWG Insulated Wire Ferrules, 8mm Pin, Blue, UL Recognized

Wire Size:
14 AWG (2.50mm²)

Color:
Blue

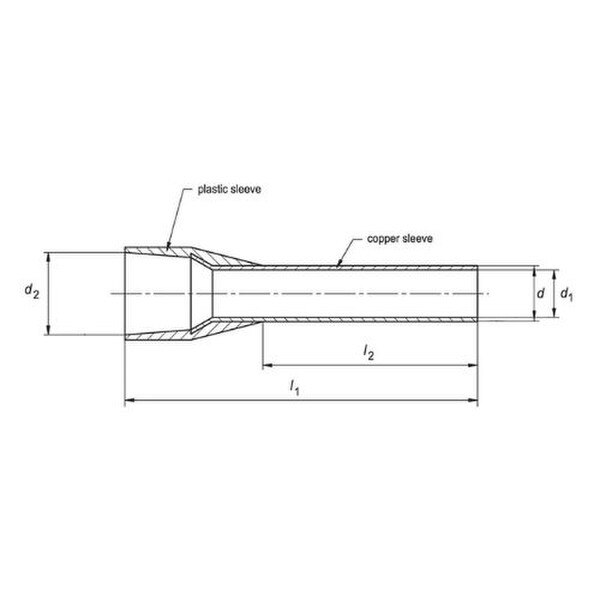

Dimensions:

• Overall Length (L1): 15.5mm (0.59")
• Pin Length (L2): 8.0mm (0.31")
• Sleeve Outer Diameter (D): 2.5mm (0.098")
• Sleeve Inner Diameter (D1): 2.2mm (0.08")
• Collar Inner Diameter (D2): 4.2mm (0.15")

Material:
Tin Plated Copper + Polypropylene Sleeve

Flammability Rating:
UL94HB

Electrical Ratings:

• Maximum Voltage: 600 Volts (AC & DC)
• Maximum Current: 30 AMP

Certifications and Compliance:

• CE Certified: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommended Tools:

• Hand Tools: FD2810SQ | FD2806SQ | FD2810HX | FD2806HX
• Crimping Machines: FD110K | FD64K | FD66K

Cross References:

• ABB: XUSD01812
• Altech Corp: 2845.0 | 2206.0 | FID1408
• American Electrical: 1181025 | 1182025
• Automation Direct: BM-00506 | V30AE000052
• Eclipse: 701-022
• Elecdirect: FER-14-8D
• GE Renewable Energy: 104W4400P007
• McMaster-Carr: 7950K27
• Phoenix Contact: 3200920 | 3200522
• Power Phase - Fastenal: 0749616
• SPC Technology: SPC4520 | 84N2054
• TE Connectivity: 1-966067-6
• Thomas Betts: F4020 | F2035
• Tyco AMP: 2-966 066-7
• WAGO: 216-206
• Weidmuller: 1333100000 | 9019160000 | 9026100000
• Wieland: 06.600.2527.0
• ZF: V3AE0052 | V30AE000052
