Parallel Guy Wire Ground Clamp, 1-Bolt, Tinned Bronze, 3/8" -3/4" Guy Wire, #2 Sol/Str to 4/0 Str Grounding Conductor

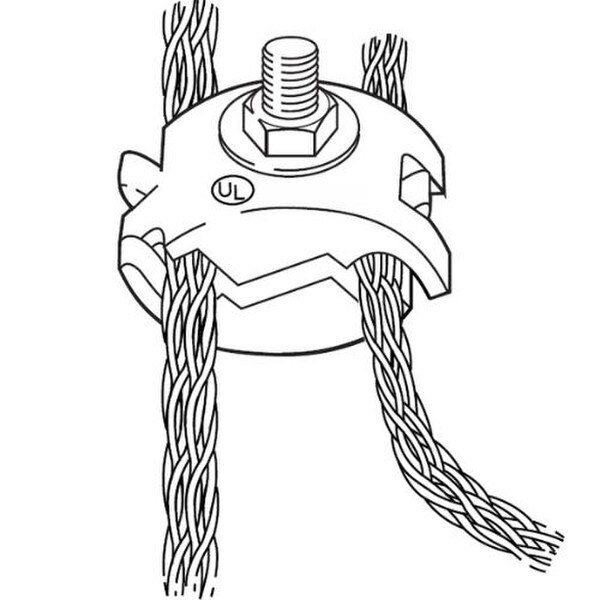

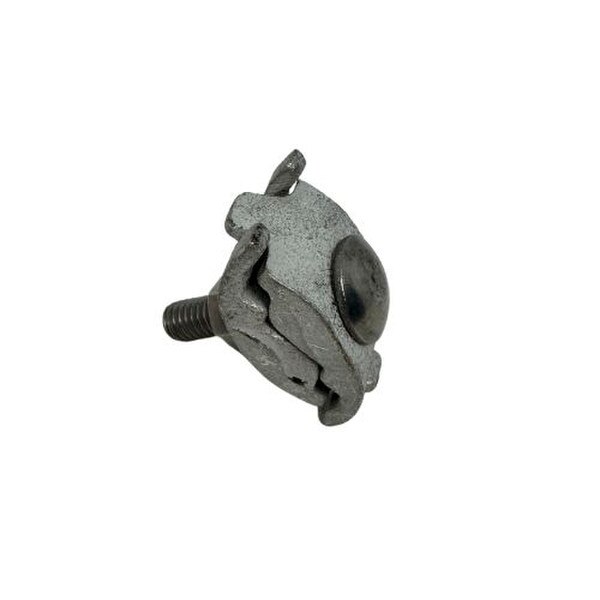

The 22360 is a versatile and durable single-bolt parallel grounding clamp made from high-quality tinned bronze. Designed for splicing or connecting two rods, two cables, or a rod and cable, this grounding clamp offers reliable performance for applications where less contact is acceptable. Its tinned finish enhances corrosion resistance, making it suitable for outdoor and harsh environments.

Key Features:

• Material: Cast bronze with a tinned finish for excellent conductivity and resistance to corrosion.
• Design: Single-bolt parallel design with a stainless steel carriage bolt, nut, and washer for secure installation.
• Dimensions: Compact size of 1 x 1-5/8 inches (2.54 x 4.13 cm).
• Weight: Lightweight at approximately 4 oz. (113 g).
• Compatibility: Fits guy wires ranging from 3/8" to 3/4" and grounding conductors from #2 solid/stranded to 4/0 stranded.
• Suitable for direct burial
• Includes stainless steel hardware
• UL Listed #467

Applications:
The 22360 is ideal for use in utility, industrial, and telecommunications grounding systems. It ensures a reliable connection for grounding guy wires, rods, and cables in challenging environments.

Choose the BF11T for its high performance, corrosion resistance, and ease of installation in critical grounding applications.
