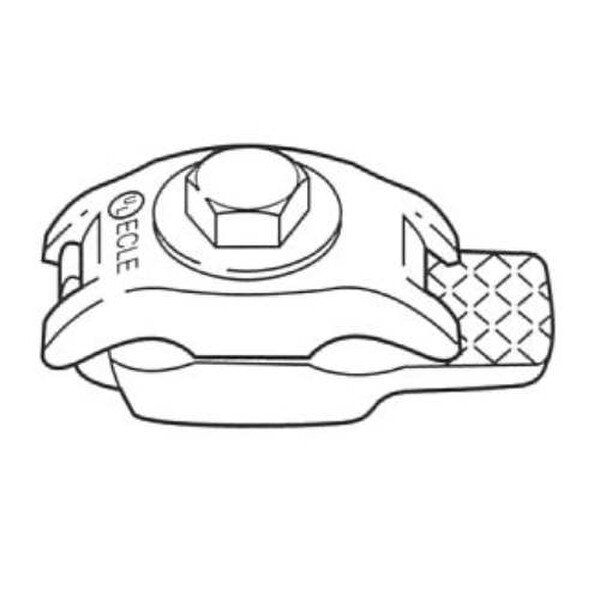

Mini Cable to Flat Metal Connector - Bronze

The ASK Tower Supply 10363 is a miniature, more compact, and cost-effective version of both the Harger 213 and our own ASK Tower Supply 26479 cable-to-flat metal connectors. Designed for secure grounding and lightning protection, this high-quality cast bronze connector provides the same durability and conductivity as its larger counterparts but in a smaller, more space-efficient form factor.

Key Features:

✔ Compact & Space-Saving Design – A miniature alternative to traditional connectors, ideal for installations where space is limited.
✔ Durable Cast Bronze Construction – Provides high conductivity, superior corrosion resistance, and long-lasting performance.

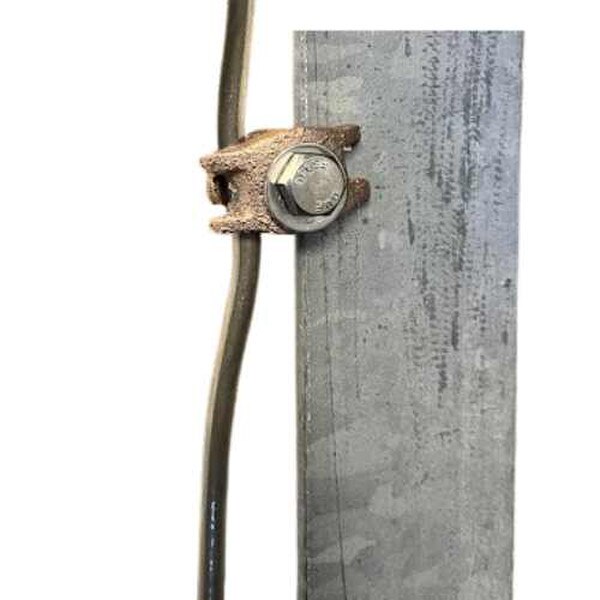

✔ Secure One-Bolt Assembly – Ensures a strong mechanical and electrical bond to flat metal surfaces up to ¼" thick.
✔ Compatible with Lightning Conductor Cables – Designed to connect all lightning conductor cables from 0.292" up to .528” diameter.
✔ Stainless Steel Hardware Included – Comes with a stainless steel cap screw, flat washer, and nut for quick and easy installation.
✔ Direct Burial Rated – Suitable for earth and concrete installations for long-term grounding reliability.
✔ Tamper-Resistant Option Available – A secure installation solution for high-theft areas (optional upgrade).
✔ US Made! - Cast with high quality bronze in the USA.

UL LISTED

Why Choose the ASK Tower Supply 10363?

🔹 More Compact, Same Strength – Provides the same reliability and electrical performance as the Harger 213 and ASK Tower Supply 26479, but in a smaller, more efficient form.
🔹 Cost-Effective Alternative – Delivers the same high performance as larger connectors at a more affordable price.
🔹 Trusted for Lightning Protection & Grounding – Ideal for utility, telecom, and industrial applications requiring a strong and secure bond between cable and flat metal surfaces.

The ASK Tower Supply 10363 is the perfect miniature solution for professionals seeking durability, space efficiency, and affordability in grounding and lightning protection systems.Cast bronze miniature cable to flat surface clamp for secondary bonding. Stainless steel bolt and washer. 3/4 x 2-1/4 in. (1.9 x 5.7 cm); approximately 3.5 oz. (99 g). Fits conductor sizes 0.292 to 0.528; Max plate width 0.25
